Draw labeled and blank synapse diagrams of the chemical synapse, from vesicles and Ca²⁺ channels to the cleft and receptors, plus the neuromuscular junction and gap junctions. Written for physiology, nursing and pharmacology.
Synapse diagram examples

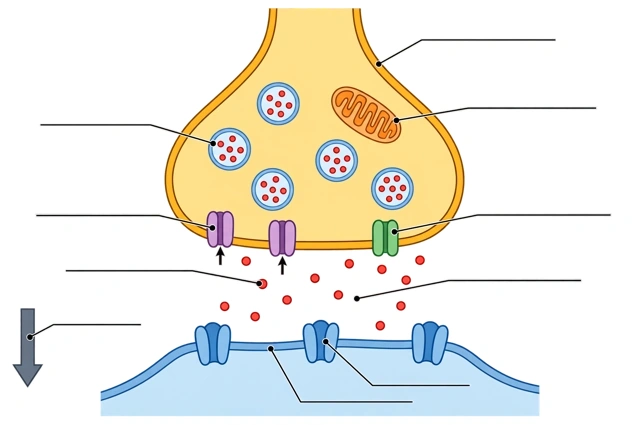

Real renders of the prompts shown: a fully labeled chemical synapse, a five-label school version, a labeled neuromuscular junction and a blank worksheet. Click one to load and edit its prompt.

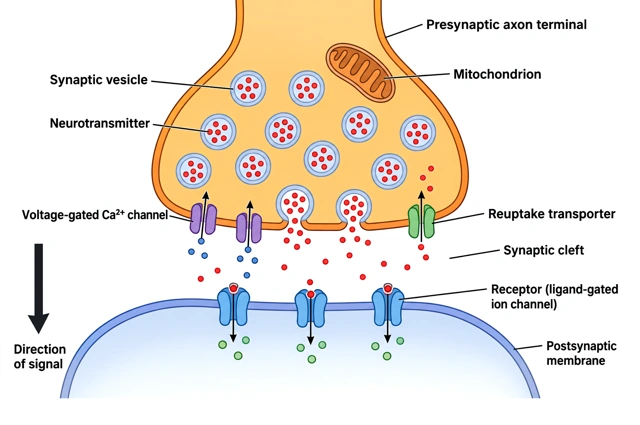

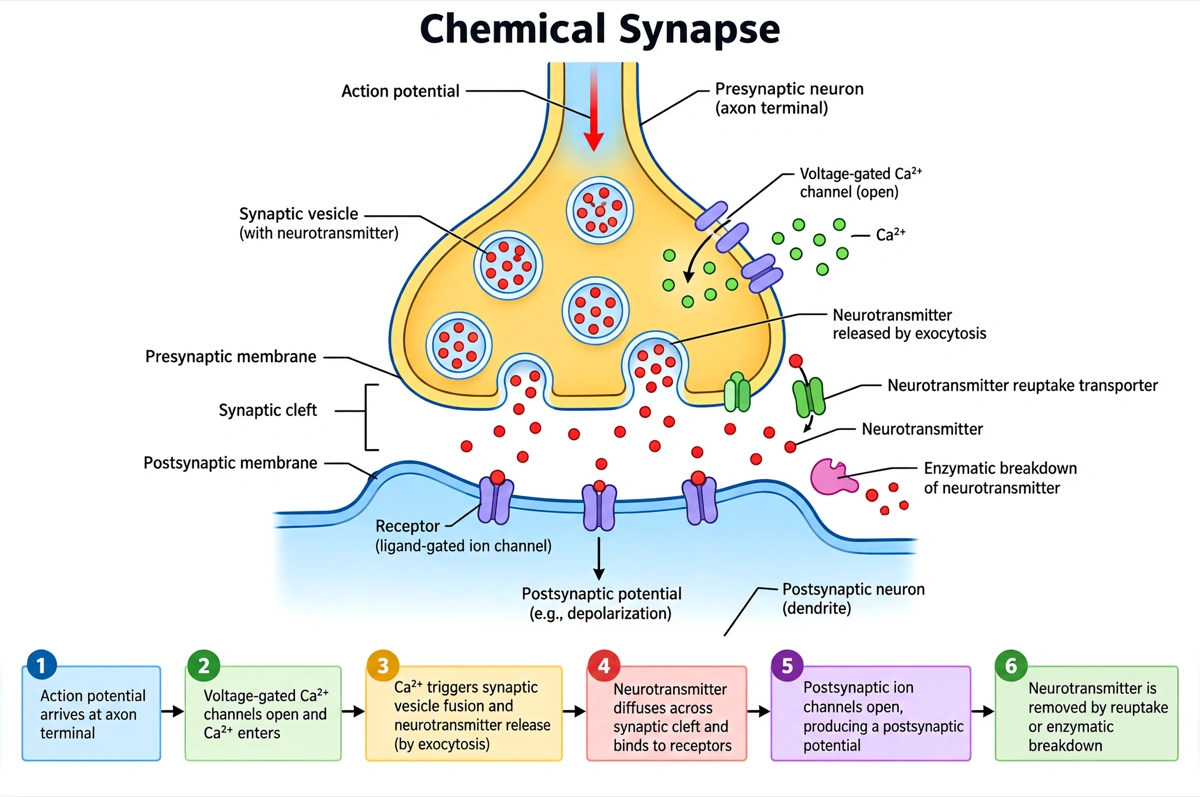

Labeled synapse diagram — parts of a synapse and what each one does
The parts a labeled chemical synapse diagram is normally expected to show, what each one does, and where it sits. This is the default label set unless you ask for a shorter one.
| Part | What it does | Where it sits |
|---|---|---|
| Axon terminal (presynaptic terminal) | Turns the arriving action potential into a chemical signal | End of the presynaptic neuron's axon |
| Synaptic vesicles | Store neurotransmitter and release it by exocytosis | Inside the axon terminal, clustered at the active zone |
| Neurotransmitter | The chemical messenger — acetylcholine, glutamate, GABA, dopamine and others — that carries the signal across the cleft | Stored in vesicles, released into the cleft |
| Voltage-gated Ca²⁺ channels | Open when the terminal depolarizes and let Ca²⁺ in, which triggers vesicle fusion | Presynaptic membrane, at the active zone |
| Mitochondria | Supply the ATP for refilling vesicles and pumping ions | Inside the axon terminal |
| Synaptic cleft | The gap, about 20–40 nm wide, that the neurotransmitter diffuses across | Between the presynaptic and postsynaptic membranes |
| Receptors (ligand-gated ion channels) | Bind the neurotransmitter and open, letting ions through to change the membrane potential | Postsynaptic membrane |
| Postsynaptic membrane | Carries the receptors; its change in potential is the EPSP or IPSP | Dendrite, cell body or muscle fiber of the receiving cell |
| Reuptake transporter | Carries neurotransmitter back into the terminal, ending the signal and recycling the transmitter | Presynaptic membrane and nearby glial cells |
| Enzymes in the cleft (such as acetylcholinesterase) | Break the neurotransmitter down | Synaptic cleft |
Courses differ in how much of the synapse they expect. Introductory worksheets usually stop at the axon terminal, vesicles, neurotransmitter, synaptic cleft and receptors; A-level, AP and university courses add the Ca²⁺ channels, reuptake or enzyme breakdown, mitochondria and the split between ionotropic and metabotropic receptors. Name the labels you need and only those are drawn.
Which synapse diagram: chemical, electrical, neuromuscular or one transmitter
The figure above is a generic chemical synapse. Most synapse figures narrow it to one junction, one transmitter or one step; name which and the drawing changes to match.
Chemical synapse diagram
Three regions read top to bottom: the presynaptic axon terminal, the synaptic cleft, the postsynaptic membrane. Vesicles go on the presynaptic side only and receptors on the postsynaptic side only. The mitochondrion in the terminal supplies the ATP for refilling and recycling the vesicles; leave it out for a simpler figure.
Synaptic transmission diagram
The same synapse with the steps numbered on it, or as a strip of numbered boxes under it: action potential arrives, Ca²⁺ channels open and Ca²⁺ enters, vesicles fuse and release neurotransmitter, it diffuses across and binds receptors, ion channels open and the postsynaptic potential follows, and the transmitter is removed. Release to response takes about 1 ms.
Synaptic cleft diagram
A close-up of the gap itself, about 20–40 nm wide: vesicles docked at the active zone above, neurotransmitter molecules partway across, receptors clustered on the membrane opposite, and the transporters and enzymes at the edges that clear the cleft.

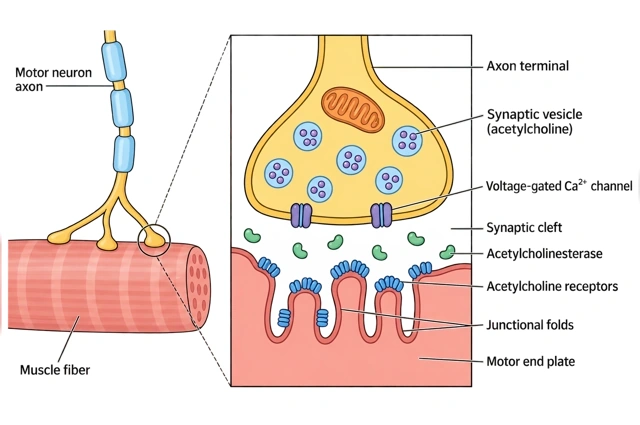

Neuromuscular junction diagram
The synapse between a motor neuron and a skeletal muscle fiber, usually in two parts: an overview of the axon branching onto the fiber, then an enlarged cross-section. The transmitter is acetylcholine, the receptors are nicotinic and sit on the junctional folds of the motor end plate, and acetylcholinesterase in the cleft breaks the acetylcholine down. Unlike a synapse in the brain it is always excitatory.
Electrical synapse and gap junction diagram
No cleft and no vesicles: two membranes about 3.5 nm apart, joined by gap-junction channels, each made of two connexons — one from each cell — of six connexin proteins apiece. Draw ions passing straight through in both directions. Electrical synapses link heart muscle cells and groups of neurons that fire together.
Excitatory and inhibitory synapse
Two synapses side by side on one neuron: glutamate opening cation channels so Na⁺ flows in and the membrane depolarizes (an EPSP), and GABA opening Cl⁻ channels so the membrane hyperpolarizes (an IPSP). Add a voltage trace under each if the lesson is summation at the axon hillock.
Serotonin and dopamine synapse diagrams
One transmitter and the drug that acts on it: an SSRI blocking the serotonin reuptake transporter, or cocaine blocking the dopamine transporter, so the transmitter stays in the cleft. Dopamine receptors, and all serotonin receptors but one, act through G proteins — ask for them drawn as metabotropic receptors, not as ion channels.

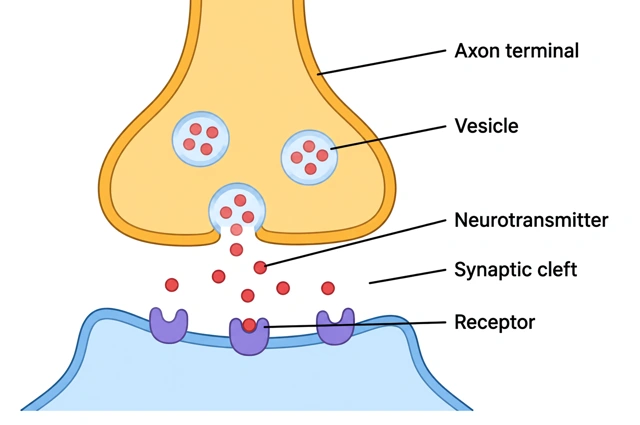

Simple synapse drawing
Five labels — axon terminal, vesicle, neurotransmitter, synaptic cleft, receptor — on the end of one neuron, a gap and the next cell. No ion channels or enzymes. It is the version for a first lesson on the nervous system and the easiest to copy by hand.
What is a synapse diagram?
A synapse diagram shows the junction where one neuron passes its signal to the next cell: an action potential opens Ca²⁺ channels in the axon terminal, synaptic vesicles release neurotransmitter into the synaptic cleft, and the neurotransmitter binds to receptors on the postsynaptic membrane. Each part is labeled with its job.
Key facts
- The synaptic cleft is only about 20–40 nm wide. The neurotransmitter crosses it by diffusion, and release plus diffusion add a synaptic delay of about 1 ms between the action potential arriving and the postsynaptic channels opening.
- Release is triggered by Ca²⁺. When the action potential depolarizes the axon terminal, voltage-gated Ca²⁺ channels open, Ca²⁺ flows in, and synaptic vesicles fuse with the presynaptic membrane and empty by exocytosis.
- A chemical synapse works in one direction only. Vesicles sit in the presynaptic terminal and receptors on the postsynaptic membrane, so the signal cannot run backwards — unlike some electrical synapses, which pass current both ways through gap junctions.
- The response depends on the receptor. Ionotropic receptors are ligand-gated ion channels that open within milliseconds; metabotropic receptors act through G proteins and second messengers, more slowly and for longer.
- The signal is ended in three ways: enzymes, reuptake and diffusion. Acetylcholinesterase splits acetylcholine in the cleft; serotonin, dopamine and norepinephrine are pumped back into the terminal by reuptake transporters, the target of SSRIs.

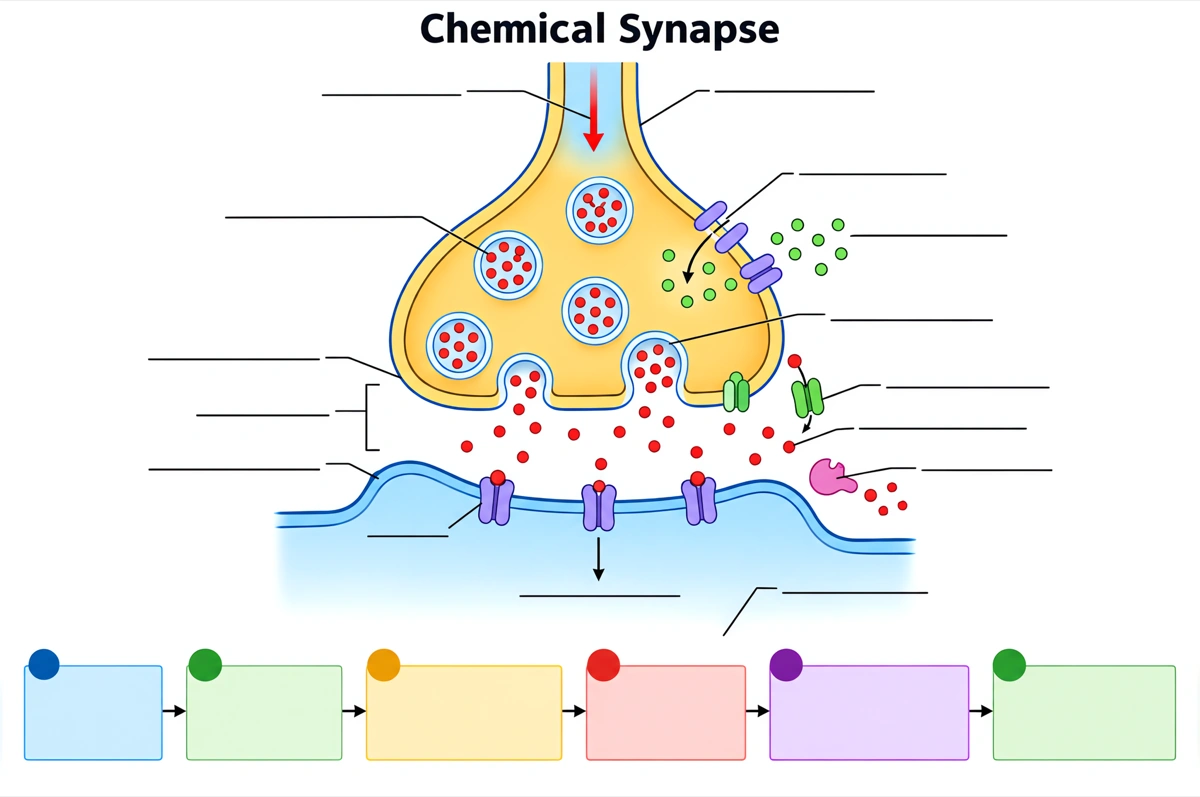

Synapse labeling: a blank synapse diagram to label
The labeled synapse above with an empty answer line at every label. Where synapse labeling most often goes wrong:
- 1
Vesicle vs neurotransmitter
The vesicle is the circle; the neurotransmitter is the red dots inside it and in the cleft.
- 2
Presynaptic vs postsynaptic membrane
The presynaptic membrane is where vesicles fuse; the postsynaptic one carries the receptors.
- 3
Ca²⁺ channel vs reuptake transporter
The purple channel lets the green Ca²⁺ in; the green transporter carries a red transmitter dot back.
- 4
Exocytosis
It names the two vesicles open to the cleft, not the closed vesicles higher up.
Chemical vs electrical synapse: what is the difference?
A chemical synapse passes the signal as a neurotransmitter released across a cleft of about 20–40 nm; an electrical synapse passes ions straight from cell to cell through gap junctions. Chemical synapses are by far the more common; electrical synapses are faster and keep groups of neurons firing in step.
| Chemical synapse | Electrical synapse | |
|---|---|---|
| Gap between the cells | Synaptic cleft, about 20–40 nm | Gap junction, about 3.5 nm, the membranes joined by channel proteins |
| How the signal crosses | Neurotransmitter released from vesicles binds receptors | Ions flow directly through the gap-junction channels |
| Speed | Synaptic delay of about 1 ms | Virtually instantaneous |
| Direction | One-way, presynaptic to postsynaptic | Often two-way |
| Effect on the signal | Can excite or inhibit, amplify, and be changed by drugs | Passes the change in voltage on with little alteration |
| Plasticity | Strengthened or weakened by use — long-term potentiation and depression, the basis of learning | Little; mainly synchronizes the activity of neighboring cells |
Draw the chemical synapse with a visible cleft, vesicles on the presynaptic side only and receptors on the postsynaptic side only, and the electrical synapse with the two membranes almost touching, joined by gap-junction channels. Receptors on both sides of a chemical synapse, or vesicles in an electrical one, are the errors to check for first.
Common questions about synapse diagrams
What are the parts of a synapse?
A chemical synapse has three parts: the presynaptic axon terminal, the synaptic cleft and the postsynaptic membrane. The terminal holds synaptic vesicles of neurotransmitter, mitochondria and voltage-gated Ca²⁺ channels; the postsynaptic membrane carries the receptors. A labeled diagram usually adds the neurotransmitter molecules and a reuptake transporter or an enzyme in the cleft.
What are the steps of synaptic transmission?
An action potential reaches the axon terminal; voltage-gated Ca²⁺ channels open and Ca²⁺ flows in; vesicles release neurotransmitter by exocytosis; it diffuses across the cleft; it binds receptors that open ion channels in the postsynaptic membrane; and it is removed by enzymes, reuptake or diffusion. The chemical step from release to response takes about 1 ms.
What is the difference between a chemical and an electrical synapse?
A chemical synapse passes the signal with a neurotransmitter across a cleft of about 20–40 nm; an electrical synapse lets ions flow straight through gap junctions between two cells that almost touch. Chemical synapses are one-way, about 1 ms slower and adjustable; electrical synapses are virtually instantaneous and often two-way.
What is the neuromuscular junction?
The neuromuscular junction is the chemical synapse between a motor neuron and a skeletal muscle fiber. The axon terminal releases acetylcholine, which binds nicotinic acetylcholine receptors on the motor end plate and starts an action potential in the muscle fiber; acetylcholinesterase in the cleft then breaks the acetylcholine down.
Can I get a blank synapse diagram to label?
Yes — view the blank version on this page free, or ask for one and every label is replaced by an empty answer line. The labeled version is the matching answer key, so the two print as a pair.
What does the synaptic cleft do?
It keeps the two cells apart, so the signal has to cross as a chemical — which is what lets a synapse amplify, inhibit or block it. The cleft is about 20–40 nm wide; the neurotransmitter diffuses across it, and enzymes and transporters at its edges clear it away.
Why is calcium needed for neurotransmitter release?
Ca²⁺ entering the axon terminal is the trigger that makes synaptic vesicles fuse with the presynaptic membrane. Without it the action potential still arrives but no neurotransmitter is released, which is why blocking the voltage-gated Ca²⁺ channels stops transmission.
How is a neurotransmitter removed from the synapse?
By enzyme breakdown, by reuptake into the presynaptic terminal or nearby glial cells, or by diffusing out of the cleft. Acetylcholinesterase splits acetylcholine; SSRI antidepressants block serotonin reuptake, so serotonin stays in the cleft longer.
What is the difference between an excitatory and an inhibitory synapse?
An excitatory synapse depolarizes the postsynaptic membrane (an EPSP), moving it toward threshold; an inhibitory synapse hyperpolarizes it (an IPSP), moving it away. Glutamate is the main excitatory neurotransmitter in the brain and GABA the main inhibitory one; whether the neuron fires depends on the sum of all its inputs.
