Meiosis Diagram Maker
Draw labeled meiosis diagrams of every stage of meiosis I and II with chromosome counts, crossing over, independent assortment, nondisjunction, mitosis versus meiosis, and sperm and egg formation. Used in genetics lessons.
Meiosis diagram examples

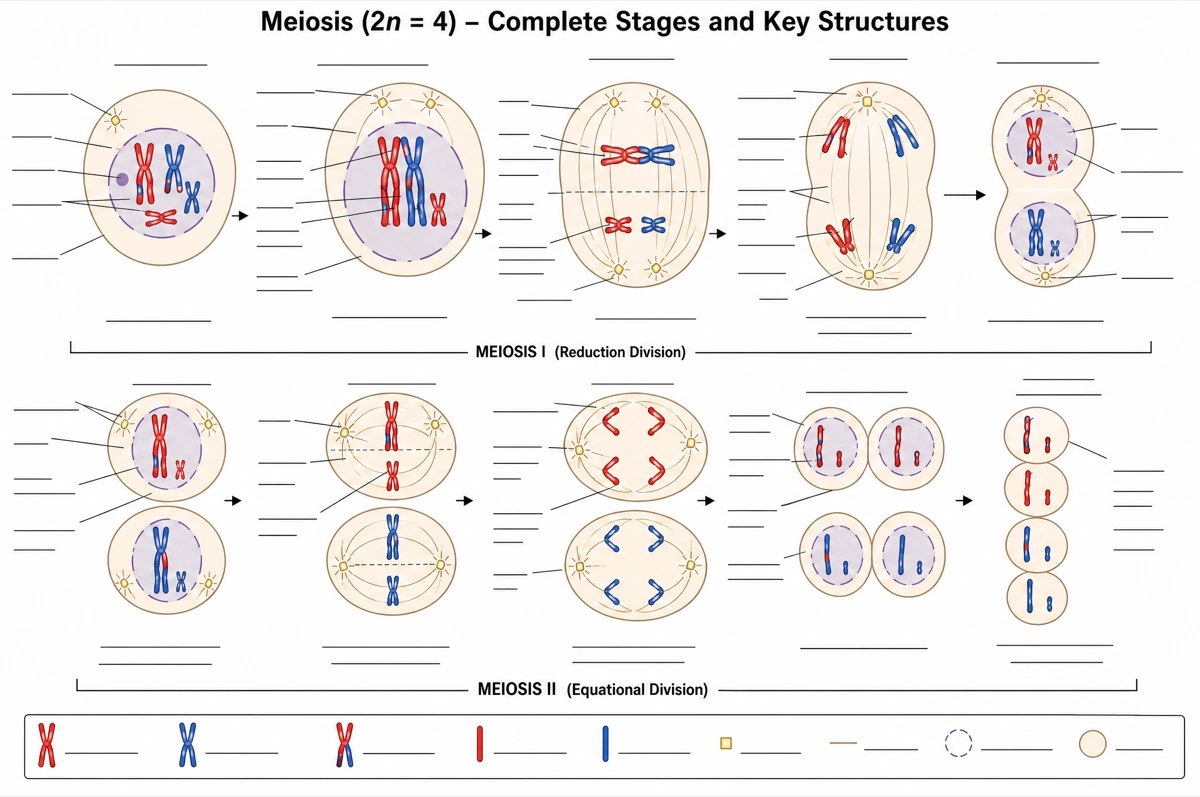

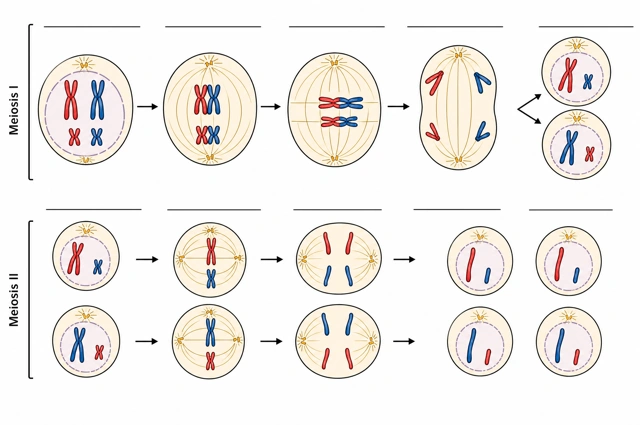

Four meiosis diagrams of a 2n = 4 cell: every stage labeled, a simple overview, meiosis I vs II and a blank worksheet. Each is a real render of the prompt shown; click one to load that prompt and edit it.

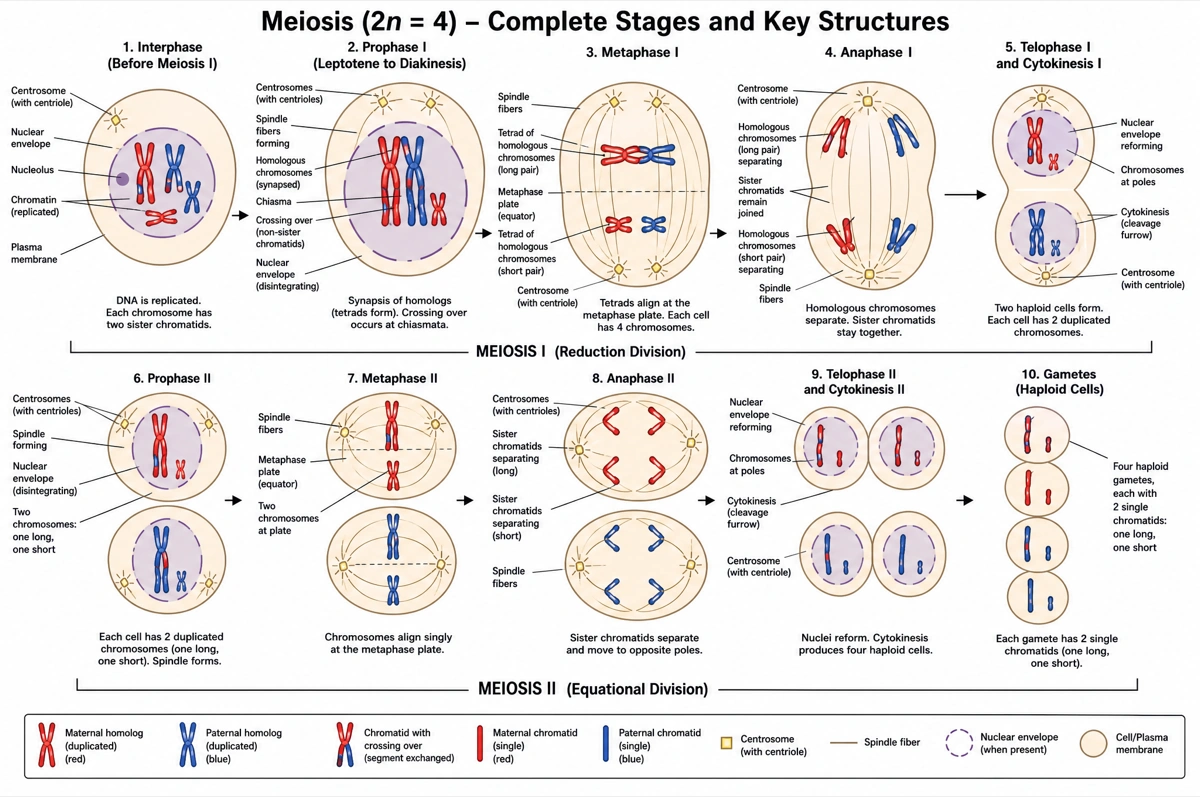

Labeled meiosis diagram, stage by stage, for a cell with 2n = 4
Ten panels in two rows: meiosis I along the top halves the chromosome number, meiosis II below splits the chromatids. Maternal chromosomes are red, paternal blue.
- 1
Interphase → prophase I
DNA is copied once; homologs pair into tetrads and non-sister chromatids cross over at chiasmata.
- 2
Metaphase I → telophase I
Pairs line up at the plate and homologs go to opposite poles; each new cell has 2 duplicated chromosomes.
- 3
Prophase II → anaphase II
With no new replication, chromosomes line up singly and the sister chromatids are pulled apart.
- 4
Telophase II → gametes
Four haploid cells, each with one long and one short chromatid, no two alike.
Meiosis 1, meiosis 2, crossing over and the other meiosis diagrams
Each of these is drawn from the same 2n = 4 cell unless you give another number. Name the one you need; a prompt that only says “meiosis” gets the full ten-panel sequence above.

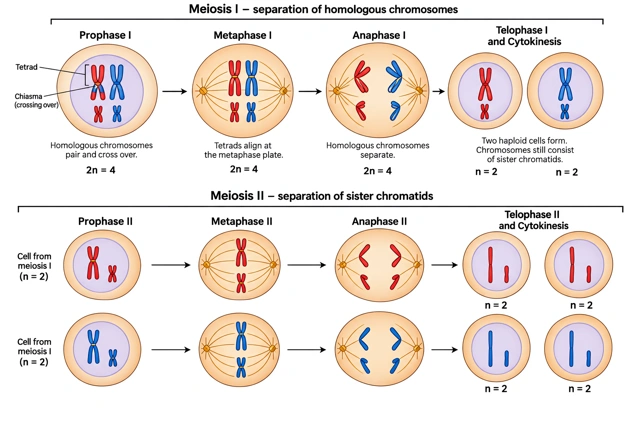

Meiosis 1 diagram
Prophase I to telophase I, the reduction division. Homologous chromosomes pair, cross over and line up as pairs in metaphase I, with both sister kinetochores of each chromosome facing the same pole; in anaphase I the chiasmata release and whole homologs move apart while the sister chromatids stay joined at the centromere. A human cell goes from 46 chromosomes to two cells of 23, each chromosome still two chromatids.
Prophase 1 diagram
The longest stage, split into five substages: leptotene (chromosomes condense into threads), zygotene (homologs start to pair and the synaptonemal complex forms), pachytene (pairing complete, crossing over), diplotene (the complex breaks down and homologs pull apart except at the chiasmata) and diakinesis (full condensation, nuclear envelope breaks down). Human oocytes pause in diplotene from before birth until ovulation.
Meiosis 2 diagram
Two haploid cells dividing again, with no S phase in between. Chromosomes line up singly in metaphase II, sister kinetochores now facing opposite poles, and separate in anaphase II. It looks like mitosis, but after crossing over the two sisters are no longer identical, so draw them with their swapped segments. A human cell ends with 23 single-chromatid chromosomes.
Meiosis stages diagram with chromosome counts
The stages of meiosis I and II with a count under every cell: for 2n = 4, 4 chromosomes and 8 chromatids before the first division, 2 chromosomes and 4 chromatids after it, and 2 single-chromatid chromosomes after the second. Exam questions ask for these numbers, and writing them in shows that the number halves in meiosis I, not meiosis II.
Mitosis vs meiosis diagram
One 2n = 4 parent cell drawn twice: mitosis gives two cells with 4 chromosomes each, meiosis gives four cells with 2. The panel that shows the difference best is metaphase: single chromosomes on the plate in mitosis, homologous pairs in metaphase I. Ask for both columns in the same colors so the reader compares like with like.
Crossing over diagram
One homologous pair at close range: four chromatids, two non-sister chromatids crossing at a chiasma and exchanging matching segments. Put two genes on the chromosome, A/a and B/b, on either side of the crossover; the result is two parental chromatids (AB, ab) and two recombinant ones (Ab, aB).
Independent assortment diagram
Two homologous pairs at metaphase I in both possible orientations, side by side, giving four gamete types. With n pairs there are 2ⁿ combinations: 4 for two pairs, 8,388,608 for the 23 human pairs, before crossing over adds more.
Nondisjunction diagram
Two columns. In meiosis I one homologous pair goes to the same pole, so all four gametes are abnormal: two carry an extra chromosome (n + 1), two are missing one (n − 1). In meiosis II one pair of sisters fails to separate in one cell, giving two normal gametes, one n + 1 and one n − 1. An n + 1 egg with an extra chromosome 21, once fertilized, gives trisomy 21.
Spermatogenesis diagram
Meiosis in the seminiferous tubules: a spermatogonium (2n) divides by mitosis, one daughter becomes a primary spermatocyte (2n), meiosis I gives two secondary spermatocytes (n) and meiosis II four spermatids (n), which mature into sperm. It runs continuously from puberty, and all four products become sperm.
Oogenesis diagram
The same two divisions with unequal cytokinesis and two pauses. A primary oocyte (2n) stops in prophase I before birth; from puberty, one at a time completes meiosis I into a large secondary oocyte and a small first polar body. The secondary oocyte stops in metaphase II and finishes only if a sperm enters, giving one egg and a second polar body.
Meiosis drawing
A version simple enough to copy by hand: one long and one short chromosome pair, maternal in one color and paternal in another, through two divisions to four cells. Two pairs are the fewest that still show independent assortment, which is why textbooks draw 2n = 4. Ask for a line drawing with stage names only.
Stages of meiosis and what happens in each
The stages a labeled meiosis diagram is normally expected to show, what happens to the chromosomes in each, and what to draw. This is the default label set unless you ask for a shorter one.
| Stage | What happens | What to draw |
|---|---|---|
| Interphase (before meiosis) | DNA is replicated; each chromosome becomes two sister chromatids | One diploid cell with an intact nucleus |
| Prophase I | Chromosomes condense; homologous chromosomes pair (synapsis) and cross over | Paired homologs joined at chiasmata, nuclear envelope breaking down |
| Metaphase I | Homologous pairs line up at the metaphase plate, each in random orientation | Pairs side by side across the equator, spindle fibers from both poles |
| Anaphase I | Homologous chromosomes are pulled to opposite poles; sister chromatids stay together | Whole X-shaped chromosomes moving apart |
| Telophase I and cytokinesis | Two haploid cells form, each chromosome still made of two chromatids | Two cells, each with half the chromosomes |
| Prophase II | Chromosomes condense again and new spindles form, with no DNA replication | Two cells, each with a new spindle |
| Metaphase II | Chromosomes line up singly at the plate in each cell | One row of X-shaped chromosomes per cell |
| Anaphase II | Sister chromatids separate and move to opposite poles | Single chromatids moving apart in both cells |
| Telophase II and cytokinesis | Nuclei re-form and both cells divide | Four haploid cells, each genetically different |
Courses differ in how many stages they expect. Introductory worksheets often show meiosis I and II as two steps ending in four cells; advanced courses add prometaphase, interkinesis, the synaptonemal complex and the substages of prophase I. Name the stages you need and only those are drawn.
What is a meiosis diagram?
A meiosis diagram shows one diploid cell dividing twice into four haploid cells: homologous chromosomes pair, cross over and separate in meiosis I, and sister chromatids separate in meiosis II. Each stage is drawn in order.
Key facts
- One round of DNA replication, two divisions. Chromosomes are copied once, in the S phase before meiosis, and the cell then divides twice, halving the chromosome number: a human cell goes from 46 chromosomes to 23.
- Meiosis I separates homologous chromosomes; meiosis II separates sister chromatids. After meiosis I each cell is already haploid, though every chromosome still has two chromatids; meiosis II splits them, much as mitosis does.
- Crossing over happens in prophase I. Homologous chromosomes pair tightly (synapsis) and non-sister chromatids exchange segments; the crossover points show as chiasmata, at least one per chromosome.
- Independent assortment multiplies the variety. Each homologous pair lines up at random in metaphase I, so a human cell with 23 pairs can produce over 8 million (2²³) chromosome combinations before crossing over is counted.
- The four products are genetically different. Crossing over and independent assortment make every haploid cell unique, unlike the two identical cells mitosis produces.
Mitosis vs meiosis: what is the difference?
Mitosis is one division that makes two cells genetically identical to the parent, with the same chromosome number; meiosis is two divisions that make four genetically different cells with half the chromosome number. Mitosis builds and repairs the body; meiosis makes the haploid cells of sexual reproduction — eggs and sperm in animals.
| Mitosis | Meiosis | |
|---|---|---|
| Number of divisions | One | Two |
| Cells produced | Two | Four |
| Chromosome number | Same as the parent | Halved, diploid to haploid |
| Genetic makeup | Identical to the parent | Different from the parent and from each other |
| Homologous chromosomes pair up | No | Yes, in prophase I |
| Crossing over | No | Yes, in prophase I |
| What lines up at the metaphase plate | Single chromosomes | Homologous pairs in metaphase I, single chromosomes in metaphase II |
| Purpose | Growth, repair and asexual reproduction | Gametes or spores for sexual reproduction |
| Where in the human body | Body (somatic) cells | Ovaries and testes |
Draw meiosis I with pairs of X-shaped chromosomes and meiosis II with single ones, and keep the maternal and paternal colors through every stage so crossing over shows as swapped segments. A diagram that pairs homologs in mitosis, or splits sister chromatids in anaphase I, is the error to check for first.
Common questions about meiosis diagrams
What should a labeled meiosis diagram include?
The standard set is prophase I with crossing over, metaphase I, anaphase I and telophase I, then prophase II, metaphase II, anaphase II and telophase II, ending in four haploid cells — with the homologous chromosomes, sister chromatids, chiasmata, spindle fibers and metaphase plate labeled. That is the default — ask for fewer labels and only those are drawn.
What is the difference between spermatogenesis and oogenesis?
Both are meiosis, but spermatogenesis turns each primary spermatocyte into four sperm, while oogenesis turns each primary oocyte into one egg and smaller polar bodies. Spermatogenesis runs continuously from puberty; oogenesis pauses twice, in prophase I from before birth and in metaphase II until fertilization.
What are the stages of meiosis in order?
Prophase I, metaphase I, anaphase I and telophase I, then prophase II, metaphase II, anaphase II and telophase II. Many textbooks also name prometaphase I and II, and some species pass through a short interkinesis between the two divisions, with no DNA replication.
What is the difference between meiosis I and meiosis II?
Meiosis I separates homologous chromosomes and halves the chromosome number; meiosis II separates sister chromatids and keeps the number the same. Crossing over and independent assortment both happen in meiosis I; meiosis II works much like mitosis in a haploid cell.
What is crossing over, and when does it happen?
Crossing over is the exchange of segments between non-sister chromatids of a homologous pair, during prophase I. A protein lattice, the synaptonemal complex, holds the pair together while the DNA is cut and rejoined; the crossover points appear as chiasmata, which keep the pair linked until anaphase I.
Why does meiosis produce genetic variation?
Because of crossing over in prophase I and the random orientation of homologous pairs in metaphase I. With 23 chromosome pairs, a human can make over 8 million chromosome combinations from independent assortment alone; crossing over multiplies that further.
What is the difference between haploid and diploid?
A diploid cell has two sets of chromosomes, one from each parent; a haploid cell has one set. In humans, body cells are diploid with 46 chromosomes (2n = 46) and eggs and sperm are haploid with 23 (n = 23); fertilization restores the diploid number.
What happens if chromosomes fail to separate in meiosis?
This is nondisjunction, and it gives gametes an extra or a missing chromosome. If it happens in meiosis I, all four gametes are abnormal; in meiosis II, two of the four are. A fertilized egg with an extra chromosome 21 — trisomy 21 — develops Down syndrome.
Can I make a simple meiosis drawing for younger students?

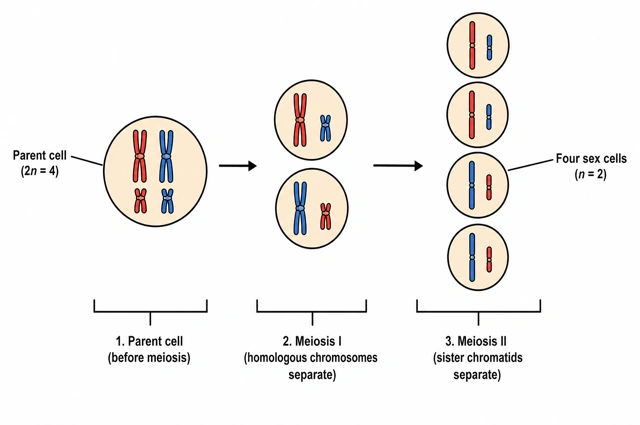

Yes — ask for a simple overview and the diagram drops to the essentials: one parent cell dividing twice into four sex cells, each with half the chromosomes. Five labels or fewer usually covers a middle-school class.
How does the tool keep the stages of meiosis in the right order?
The subject brief is built in. Every render is instructed to follow the standard textbook sequence — each stage drawn in its true order and joined to the next by an arrow — with each stage name spelled exactly. Check the chromosome counts and labels against your course before printing; the canvas lets you correct any label in place.
Can I use a meiosis diagram from here in a genetics lesson or a report?
Yes — the meiosis diagrams you generate are yours to use in genetics worksheets, revision cards, slides and theses. Export goes up to 4K depending on the model.
Can I rename the stages or translate the meiosis labels afterwards?
Yes. The canvas recognizes each label, so you can change 'chiasmata' to 'crossing over', translate the stage names, move a label between cells or recolor the two chromosome sets without regenerating the figure.
