Protein Synthesis Diagram Maker
Generate protein synthesis diagrams of transcription and translation: RNA polymerase, mRNA splicing, the ribosome with tRNAs, codons and anticodons, and the central dogma. Built for biology and genetics classes and biotech.
Protein synthesis diagram examples

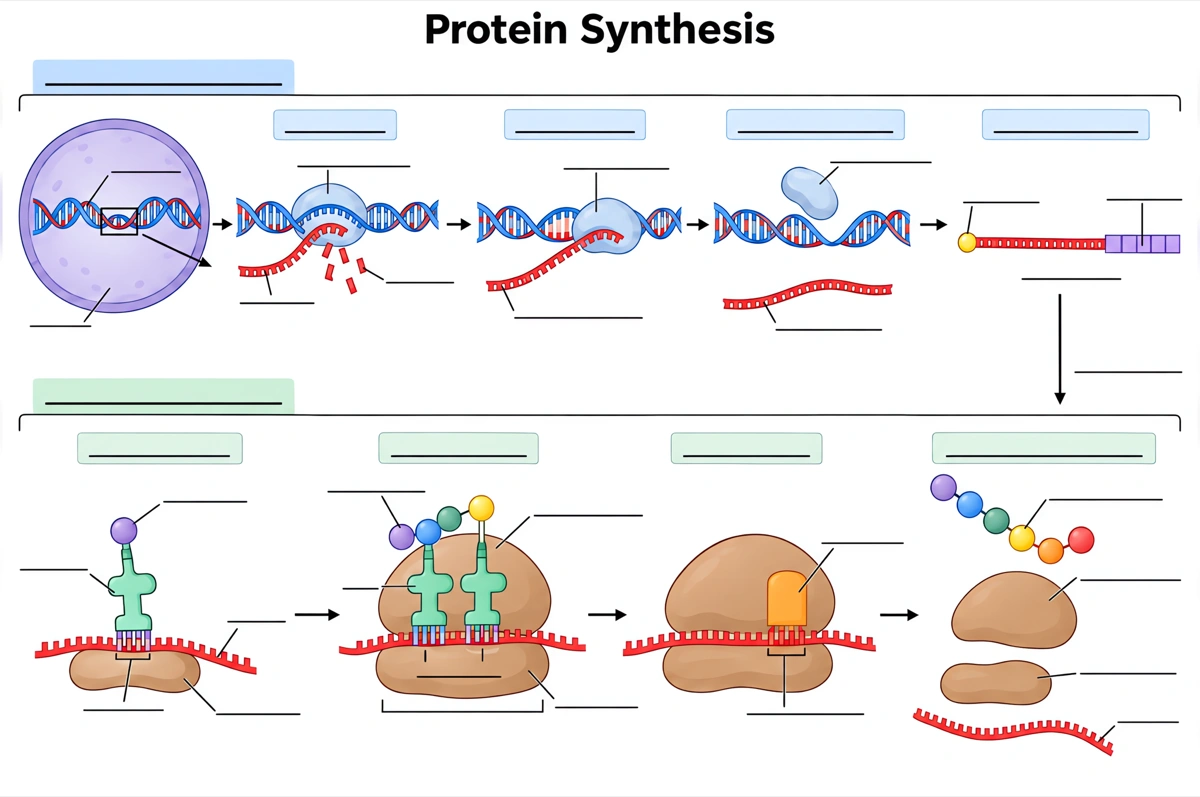

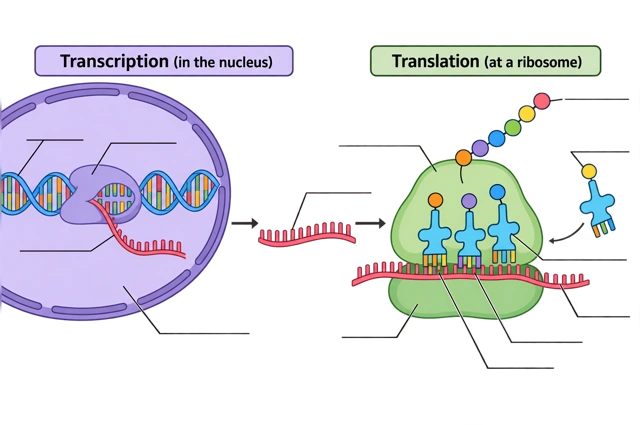

Real renders of the prompts shown: protein synthesis fully labeled from DNA to polypeptide, a five-label school overview, transcription vs translation and a blank worksheet. Click one to load and edit its prompt.

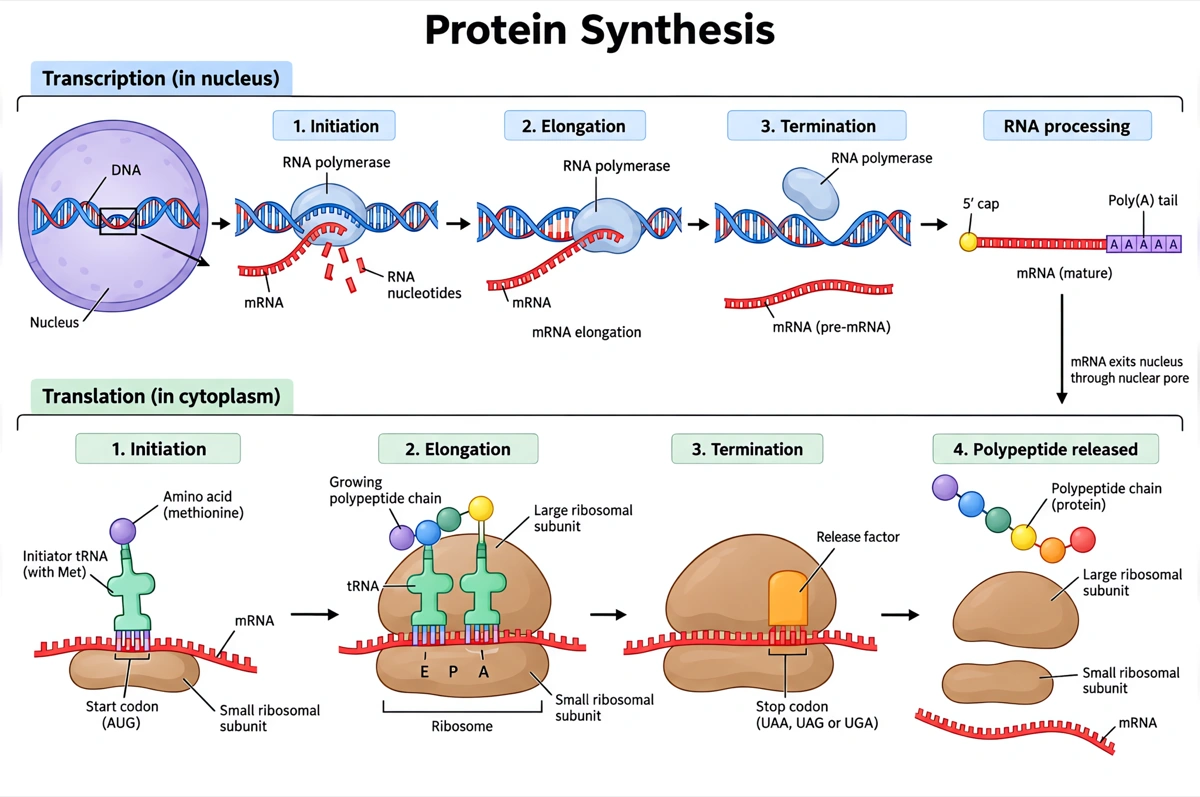

Labeled protein synthesis diagram: transcription along the top, translation below
Read each row left to right. The arrow at the right edge carries the finished mRNA out of the nucleus and down into the second row.
- 1
Transcription, in the nucleus
RNA polymerase opens the DNA, adds RNA nucleotides to the growing mRNA, then lets go at the end of the gene.
- 2
RNA processing
The pre-mRNA gets a 5′ cap, its introns are spliced out, a poly(A) tail is added, and it leaves through a nuclear pore.
- 3
Initiation and elongation, in the cytoplasm
The initiator tRNA with methionine pairs with AUG; more tRNAs follow codon by codon through the A, P and E sites.
- 4
Termination
A release factor binds the stop codon; the polypeptide and both ribosome subunits come apart.
Transcription, translation, tRNA: protein synthesis diagrams by what they zoom in on
Protein synthesis is drawn whole, as above, or one part at a time. These are the versions courses and papers use most.
Transcription diagram
One gene, close up. RNA polymerase sits in a transcription bubble on the template strand, reading it 3′ to 5′ and building RNA 5′ to 3′; the other DNA strand, the coding strand, has the same sequence as the RNA with T in place of U. Label the promoter upstream, the 5′ and 3′ ends of all three strands, and the direction the polymerase moves.
Translation diagram
A ribosome on the mRNA with its three sites: the incoming tRNA in A, the tRNA holding the growing chain in P, the empty tRNA leaving from E. The ribosome moves 5′ to 3′ along the mRNA and the chain grows from its N-terminus. Say whether to draw a eukaryotic ribosome (40S and 60S subunits, 80S together) or a bacterial one (30S and 50S, 70S).

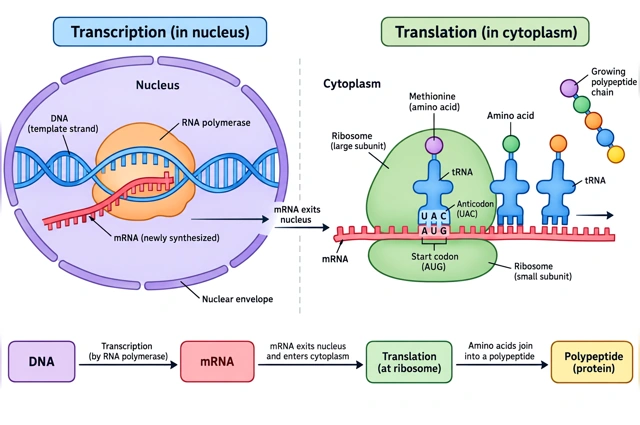

Transcription and translation diagram
The two stages in one figure, which in a eukaryotic cell means a nucleus with the mRNA crossing its envelope. Ask for the bacterial version and it changes: no nucleus and no processing, and ribosomes begin translating the mRNA while RNA polymerase is still making it, so several ribosomes ride one unfinished transcript.
Central dogma diagram
Three words and the arrows between them: DNA → RNA → protein, with a loop on DNA for replication. Add the exceptions as dashed arrows when the course covers them: reverse transcription from RNA to DNA in retroviruses such as HIV, and RNA copied to RNA in many RNA viruses. No arrow leads from protein back to nucleic acid.
tRNA diagram
The cloverleaf, about 76 to 90 nucleotides folded into four arms: the acceptor stem, ending in CCA at the 3′ end where the amino acid attaches; the D arm; the anticodon arm, with the three bases that pair with the codon; and the TΨC arm, with a variable loop between the last two. In three dimensions it folds into an L, anticodon at one end and amino acid at the other.
mRNA processing and RNA splicing diagram
The pre-mRNA before and after: a 5′ cap of modified guanine, a poly-A tail of about 200 adenines, and the introns cut out by the spliceosome so the exons join. Draw a second mature mRNA with one exon skipped to show alternative splicing, the way one gene gives more than one protein.
Gene expression diagram
Protein synthesis with its controls added. For bacteria the standard example is the lac operon: a repressor on the operator blocks RNA polymerase until lactose, as allolactose, binds the repressor and lifts it off. For eukaryotes, transcription factors at the promoter and enhancers, followed by the later control points: splicing, mRNA lifetime and translation.
Protein synthesis flow chart
Boxes and arrows with no drawings: DNA → transcription → pre-mRNA → cap, tail and splicing → mRNA → nuclear pore → ribosome → translation → polypeptide → folding. One line per box; it copies cleanly into notes and revision cards.
Simple protein synthesis drawing
DNA in the nucleus, an mRNA copy, one ribosome, tRNAs and a short chain of amino acids. Write out a short message such as AUG UUU GGC UAA so students can decode it themselves: methionine, phenylalanine, glycine, then stop.
Stages of protein synthesis and what happens in each
The stages a labeled protein synthesis diagram is normally expected to show, what happens in each, and where in the cell it takes place. This is the default label set unless you ask for a shorter one.
| Stage | What happens | Where it happens |
|---|---|---|
| Transcription: initiation | RNA polymerase binds the promoter and the DNA unwinds | Nucleus (cytoplasm in bacteria) |
| Transcription: elongation | RNA polymerase reads the template strand and builds pre-mRNA 5′ to 3′ | Nucleus |
| Transcription: termination | The transcript is released and the DNA rewinds | Nucleus |
| 5′ capping | A modified guanine cap is added to the front of the pre-mRNA, protecting it and helping ribosomes bind | Nucleus |
| Poly-A tail | About 200 adenines are added to the 3′ end | Nucleus |
| Splicing | Introns are cut out and exons joined into the mature mRNA | Nucleus |
| mRNA export | The mature mRNA leaves the nucleus through a nuclear pore | Nuclear envelope |
| Translation: initiation | The small ribosomal subunit binds the mRNA, the initiator tRNA pairs with the AUG start codon, and the large subunit joins | Cytoplasm, on free ribosomes or the rough ER |
| Translation: elongation | tRNAs enter the A site, peptide bonds join the amino acids, and the ribosome moves along the mRNA one codon at a time | Ribosome |
| Translation: termination | A stop codon reaches the A site, a release factor binds, and the polypeptide is released | Ribosome |
Courses differ in how finely they split the process. Introductory worksheets often show two steps, transcription and translation, with DNA, mRNA, the ribosome and tRNA; A-level and university courses add RNA processing, the A, P and E sites, the start and stop codons and the three phases of each stage. Name the labels you need and only those are drawn.
What is a protein synthesis diagram?
A protein synthesis diagram shows how a cell turns a gene into a protein in two stages: transcription, where RNA polymerase copies DNA into mRNA, and translation, where a ribosome reads its codons and tRNAs bring the matching amino acids. In eukaryotes the mRNA is processed in between.
Key facts
- Information flows from DNA to RNA to protein. This is the central dogma: transcription makes a messenger RNA copy of a gene, and translation on ribosomes turns that message into a chain of amino acids.
- The genetic code is read in triplets. Each three-base codon on the mRNA specifies one amino acid; of the 64 possible codons, 61 code for amino acids and 3 are stop codons, and AUG both codes for methionine and starts translation.
- Eukaryotic mRNA is processed before it leaves the nucleus. The pre-mRNA gets a 5′ cap and a poly-A tail of about 200 adenines, and its introns are spliced out so that only the exons remain.
- tRNAs are the adaptors. Each tRNA carries one amino acid and has an anticodon that base-pairs with a codon on the mRNA; depending on the species, 40 to 60 kinds of tRNA exist in the cytoplasm.
- The ribosome has three tRNA sites. A new tRNA enters the A site, the tRNA holding the growing chain sits in the P site, and empty tRNAs leave from the E site; peptidyl transferase, an RNA-based enzyme in the large subunit, forms each peptide bond.
Transcription vs translation: what is the difference?
Transcription copies a gene's DNA into messenger RNA; translation reads that mRNA to build a protein. In eukaryotes transcription happens in the nucleus and translation in the cytoplasm; in bacteria, which have no nucleus, both happen in the cytoplasm.
| Transcription | Translation | |
|---|---|---|
| Template | DNA (the template strand) | mRNA |
| Product | RNA — pre-mRNA in eukaryotes | A polypeptide chain |
| Where, in eukaryotes | Nucleus | Cytoplasm, on ribosomes |
| Main machinery | RNA polymerase (RNA polymerase II for mRNA) | Ribosome and tRNAs |
| Building blocks | RNA nucleotides (A, U, G, C) | Amino acids |
| Start signal | Promoter, such as the TATA box | AUG start codon |
| Stop signal | Termination sequence | Stop codon (UAA, UAG or UGA) |
| Base pairing | RNA nucleotides pair with the DNA template, U in place of T | tRNA anticodons pair with mRNA codons |
Draw transcription inside the nucleus and translation outside it, with the mRNA crossing the nuclear envelope between them, and show at least one codon paired with its tRNA's anticodon. A diagram with the ribosome translating inside the nucleus, or with T in the mRNA, is the error to check for first.
Common questions about protein synthesis diagrams
What should a labeled protein synthesis diagram include?
The standard set is the DNA with its template strand, RNA polymerase and the mRNA in the nucleus, a nuclear pore, then the ribosome with its small and large subunits, tRNAs with their anticodons and amino acids, the mRNA codons from the start codon on, and the growing polypeptide chain. That is the default — ask for fewer labels and only those are drawn.
What is the central dogma of molecular biology?
Genetic information flows from DNA to RNA to protein: DNA is copied by replication, transcribed into RNA and translated into protein. Francis Crick stated it in 1958. Retroviruses such as HIV copy RNA back into DNA with reverse transcriptase, and many RNA viruses copy RNA to RNA, but no known process turns a protein sequence back into nucleic acid.
What are the steps of protein synthesis in order?
Transcription, RNA processing and translation. RNA polymerase copies a gene into pre-mRNA; in eukaryotes the pre-mRNA is capped, given a poly-A tail and spliced; the mRNA leaves the nucleus; and a ribosome translates it — initiation at AUG, elongation codon by codon, termination at a stop codon.
What is the difference between a codon and an anticodon?
A codon is a three-base sequence on the mRNA; an anticodon is the matching three-base sequence on a tRNA. The two pair by complementary base pairing: the codon AUG is read by a tRNA with the anticodon UAC, which carries methionine.
What do mRNA, tRNA and rRNA do?
mRNA carries the gene's message from the nucleus to the ribosome; tRNA brings the amino acids and matches them to the codons; rRNA forms the core of the ribosome and catalyzes the peptide bonds. All three are made by transcription.
Where does protein synthesis take place?
Transcription takes place in the nucleus and translation in the cytoplasm, on free ribosomes or ribosomes on the rough endoplasmic reticulum. In bacteria, which have no nucleus, both take place in the cytoplasm. Mitochondria and chloroplasts also have ribosomes of their own.
How many codons are there?
64: 61 code for amino acids and 3 are stop codons. Most amino acids have more than one codon, which is why the code is called degenerate; AUG is the start codon and also codes for methionine.
How does a mutation change protein synthesis?
A changed base changes the codon, which may then call for a different amino acid, the same one, or a stop. Inserting or deleting one or two bases shifts the reading frame and garbles every codon after it — the effect Crick and Brenner used to show that the code is read in triplets.

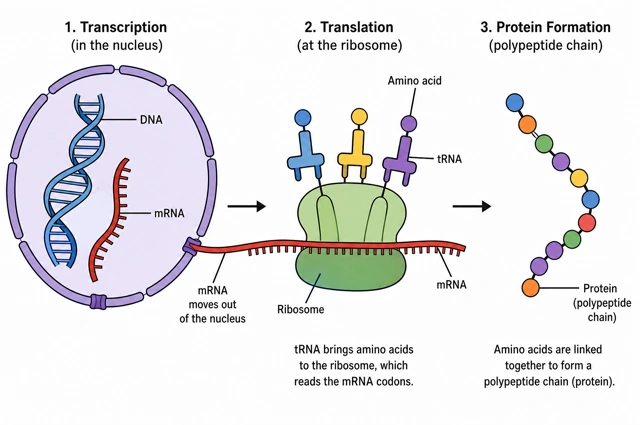

Can I make a simple protein synthesis drawing for younger students?
Yes — ask for a simple overview and the diagram drops to the essentials: DNA in the nucleus, the mRNA copy, the ribosome, and the amino acids joining into a protein. Five labels or fewer usually covers a middle-school class.
How does the tool keep transcription and translation in the right place and order?
The subject brief is built in. Every render is instructed to follow the standard textbook sequence — each stage drawn in its true order and joined to the next by an arrow — with each label spelled exactly. Check the labels against your course before printing; the canvas lets you correct any in place.
Can I use a protein synthesis diagram from here in a biology lesson or a thesis?
Yes — the protein synthesis diagrams you generate are yours to use in molecular biology worksheets, lecture slides, lab reports and theses. Export goes up to 4K depending on the model.
