Chloroplast Diagram Maker
Describe the diagram you need and get a labeled chloroplast — both envelope membranes, the stroma, thylakoids stacked into grana, and the chloroplast's own DNA and ribosomes, each in its place. Or view the labeled and blank versions below, free.
Or start from an example

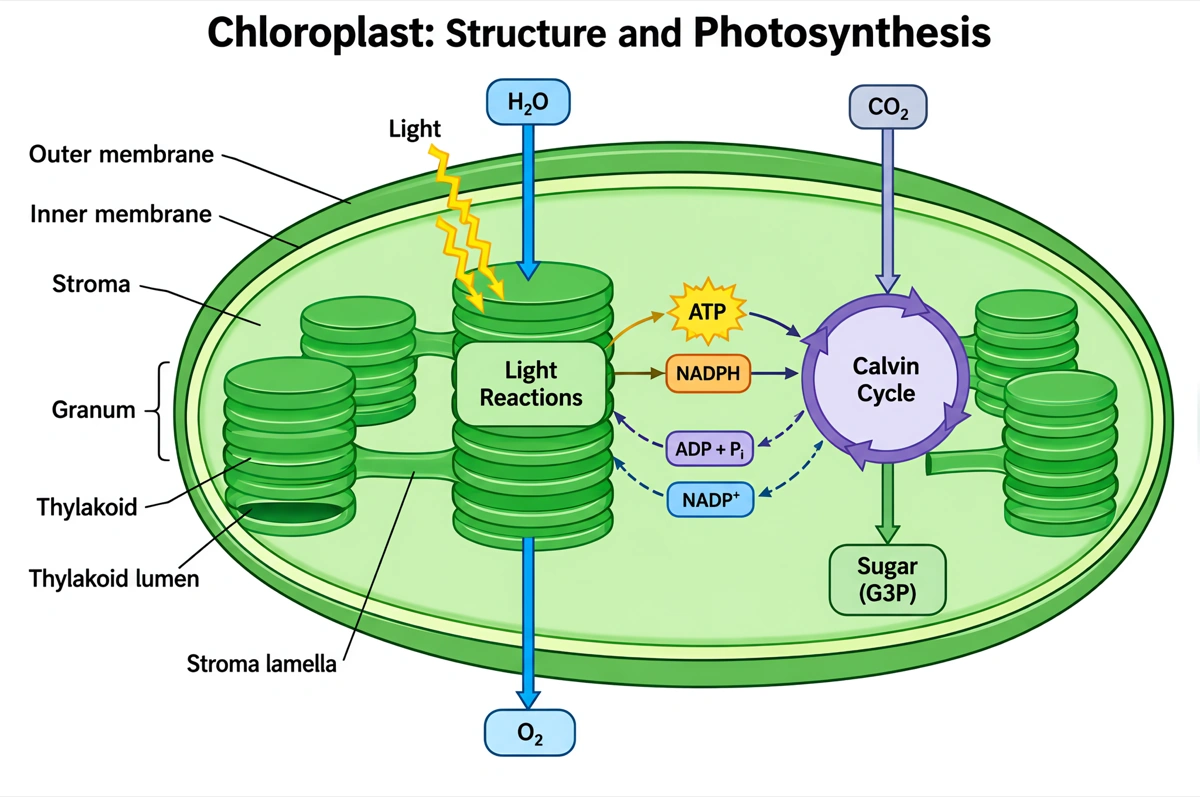

Labeled chloroplast diagram (answer key)
A chloroplast in cross-section with its membranes, stroma, thylakoids and grana named. Print it as the answer key, or hand it out as a revision sheet.

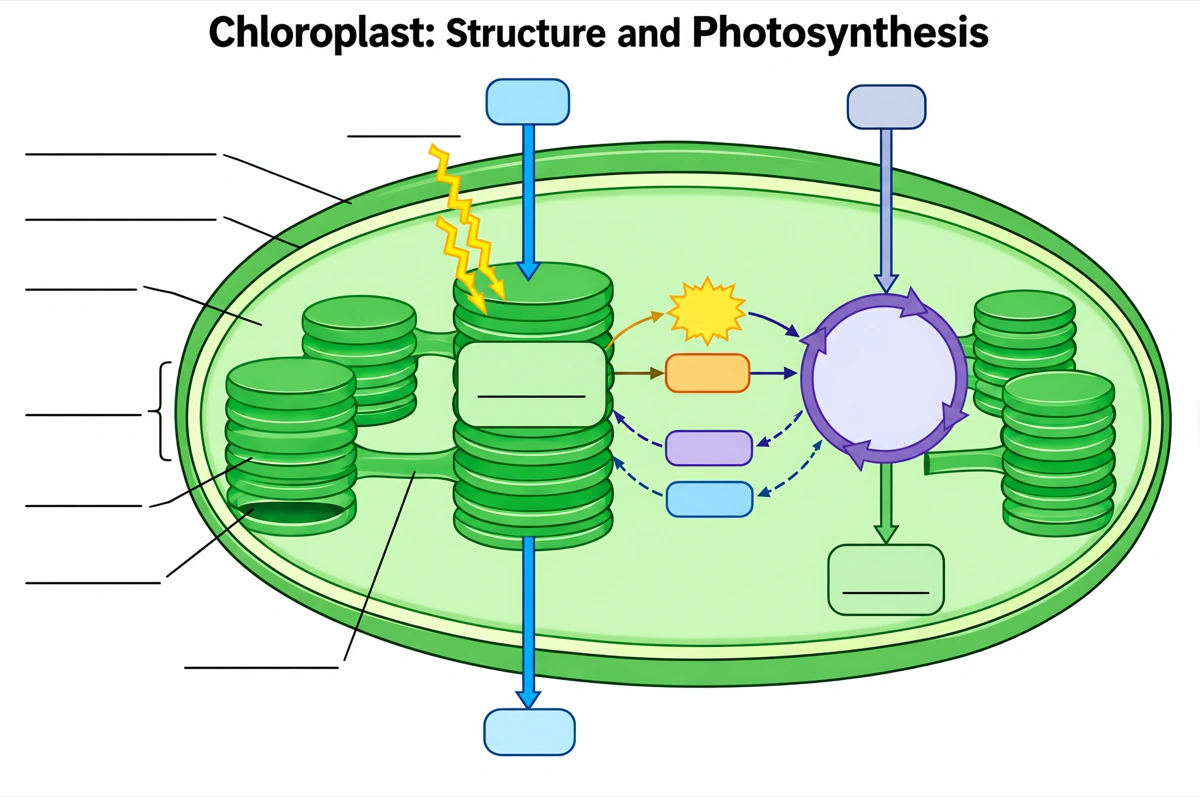

Blank chloroplast diagram to label
The same drawing with an empty answer line where every label was, ready for a worksheet, a quiz or an exam question.
What is a chloroplast diagram?
A chloroplast diagram shows the organelle of photosynthesis in cross-section: a double-membrane envelope around the fluid stroma, with thylakoids stacked into grana. Light is captured on the thylakoid membranes; the Calvin cycle builds sugar in the stroma.
Key facts
- A chloroplast has three membrane systems. The outer and inner membranes form the envelope; the thylakoid membranes inside, stacked into grana, form a third and enclose the thylakoid lumen.
- The two stages of photosynthesis happen in different places. The light-dependent reactions run on the thylakoid membranes and make ATP and NADPH; the Calvin cycle runs in the stroma and uses them to build sugar from carbon dioxide.
- Chlorophyll sits in the thylakoid membranes. Each photosystem is served by a light-harvesting complex of 300 to 400 chlorophyll a and b molecules plus carotenoids, which pass the energy of absorbed light to a reaction center.
- Chloroplasts carry their own genome. Like mitochondria they have their own DNA — a single circular chromosome — and their own ribosomes, a legacy of their descent from free-living cyanobacteria.
- Carbon dioxide reaches the chloroplast from outside the leaf. It enters through the stomata, diffuses to the mesophyll cells and on into the stroma, where it is fixed.
How does the chloroplast diagram maker work?
Describe the diagram
Say what it is for and how deep it should go — a fully labeled cross-section, a simple five-label version, the light reactions and the Calvin cycle drawn inside it. A sentence is enough.
Pick a style
The default is a clean flat textbook plate — white background, labels on straight leader lines. Or apply watercolor, ink line art, 3D and other finishes.
Refine and export
The result opens in your workspace, where you can redraw regions, edit labels on the canvas, upscale and export in high resolution.
Parts of a chloroplast and what each one does
The structures a labeled chloroplast diagram is normally expected to show, what each one does, and where it sits. This is the default label set unless you ask for a shorter one.
| Structure | What it does | Where to draw it |
|---|---|---|
| Outer membrane | Outer layer of the double-membrane envelope | The outermost boundary of the organelle |
| Intermembrane space | Narrow gap between the two envelope membranes | A thin band between the outer and inner membrane |
| Inner membrane | Inner layer of the envelope; controls what passes into the stroma | Just inside the outer membrane |
| Stroma | Fluid where the Calvin cycle builds sugar from carbon dioxide | Filling the space inside the inner membrane |
| Thylakoid | Flattened membrane sac carrying chlorophyll and the light-dependent reactions | Throughout the stroma, mostly in stacks |
| Granum (plural grana) | A stack of thylakoids | Several stacks spread across the stroma |
| Thylakoid lumen | Space inside each thylakoid, where protons build up to drive ATP synthase | Inside every thylakoid disc |
| Stroma lamellae | Unstacked thylakoids linking one granum to the next | Thin sheets running between the grana |
| Chloroplast DNA | The chloroplast's own genome, a single circular chromosome | Small loops in the stroma |
| Ribosomes | Make the proteins coded by chloroplast DNA | Small dots in the stroma |
| Starch grain | Stores sugar made by photosynthesis | Oval granules in the stroma |
Courses differ in how many of these they expect. Introductory worksheets often stop at the outer membrane, inner membrane, stroma, thylakoid and granum; advanced courses add the lumen, stroma lamellae, chloroplast DNA, ribosomes and starch. Name the labels you need and only those are drawn.

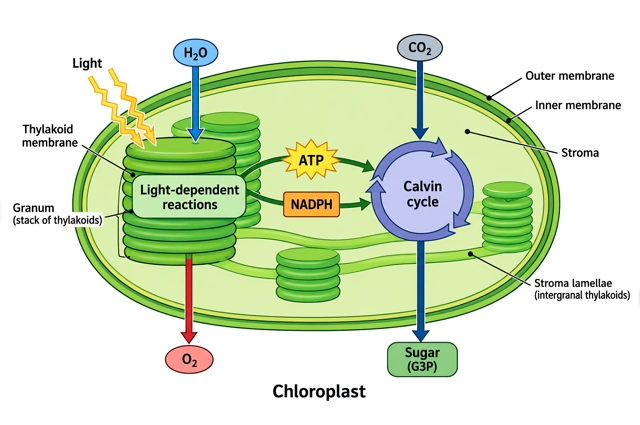

Light-dependent reactions vs Calvin cycle: what is the difference?
The light-dependent reactions run on the thylakoid membranes, use light to split water, release oxygen and make ATP and NADPH; the Calvin cycle runs in the stroma and spends that ATP and NADPH to fix carbon dioxide into sugar. The Calvin cycle needs no light directly, but it stops once the light reactions stop supplying it.
| Light-dependent reactions | Calvin cycle | |
|---|---|---|
| Where in the chloroplast | Thylakoid membranes | Stroma |
| Uses light directly | Yes | No, but depends on the products of the light reactions |
| Takes in | Light, water, ADP and NADP⁺ | Carbon dioxide, ATP and NADPH |
| Gives out | Oxygen, ATP and NADPH | Sugar (G3P), ADP and NADP⁺ |
| Key players | Photosystem II, electron transport chain, photosystem I, ATP synthase | RuBisCO and RuBP |
| Other names | Light reactions | Light-independent reactions; the outdated name is dark reaction |
Draw ATP and NADPH moving from the thylakoids into the stroma, and ADP and NADP⁺ moving back: the two stages form a loop. A diagram that puts the Calvin cycle outside the chloroplast, or calls it a dark reaction that happens only at night, has the model wrong.
Where are chloroplast diagrams used?
Chloroplast diagrams are used mostly in biology teaching — labeling worksheets, photosynthesis lessons and exam revision — and as schematic panels in plant science talks and papers. What changes is the depth: five labels for a first course, the lumen, stroma lamellae, photosystems and ATP synthase for a university one.
School biology
Labeling worksheets and revision sheets from middle school through GCSE, A-level, AP Biology and IB, usually next to the plant cell. The labeled cross-section, plus the same drawing blank for students.
Photosynthesis lessons
The chloroplast as the stage for both halves of photosynthesis: light reactions on the thylakoids, the Calvin cycle in the stroma, ATP and NADPH passing between them.
Exam revision
One-page summaries that tie each structure to its job — which is how exam questions ask about them: name the site of the Calvin cycle, explain why stacked grana give a large membrane surface.
Research figures
Schematic panels for work on photosynthetic efficiency, chloroplast genomes or protein import, with the compartment under study marked on the organelle.
Common questions about chloroplast diagrams
What should a labeled chloroplast diagram include?
The standard set is the outer membrane, intermembrane space, inner membrane, stroma, thylakoids, grana, thylakoid lumen, stroma lamellae, chloroplast DNA, ribosomes and starch grains. That is the default — ask for fewer labels and only those are drawn.

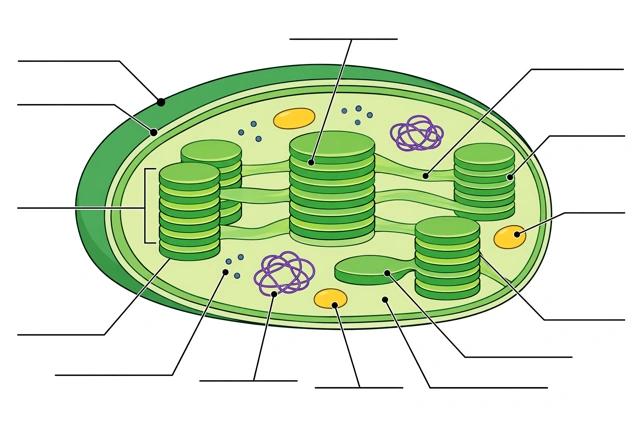

Can I get a blank chloroplast diagram for students to label?
Yes — view the blank version on this page free, or ask for one and every label is replaced by an empty answer line. The labeled version is the matching answer key, so the two print as a pair.
What is the function of the chloroplast?
The chloroplast carries out photosynthesis: it captures light energy and stores it in sugar built from carbon dioxide and water, releasing oxygen. It also makes some of its own proteins from its own DNA, and in many plants stores the sugar it makes as starch.
What is the difference between a thylakoid and a granum?
A thylakoid is a single flattened membrane sac; a granum is a stack of thylakoids. The stacks are joined by unstacked thylakoids called stroma lamellae, so the thylakoids form one interconnected membrane system.
What is the difference between stroma and stoma?
Stroma is the fluid inside a chloroplast, where the Calvin cycle runs; a stoma (plural stomata) is a pore in the leaf surface that lets carbon dioxide in and oxygen and water vapor out.
Where does the Calvin cycle take place?
In the stroma of the chloroplast. There the enzyme RuBisCO fixes carbon dioxide onto RuBP, and ATP and NADPH from the thylakoid membranes power the reduction and regeneration steps. Three turns of the cycle make one G3P; six make one glucose.
What is the difference between a chloroplast and a mitochondrion?
A chloroplast captures light energy to build sugar; a mitochondrion breaks sugar down to make ATP. Both have a double membrane and their own DNA and ribosomes, and both descend from bacteria. Plant cells have both; animal cells have only mitochondria.
Why are chloroplasts green?
Because chlorophyll in the thylakoid membranes absorbs mostly blue and red light and reflects green. Chloroplasts also hold yellow and orange carotenoids, which show in autumn leaves once the chlorophyll breaks down.

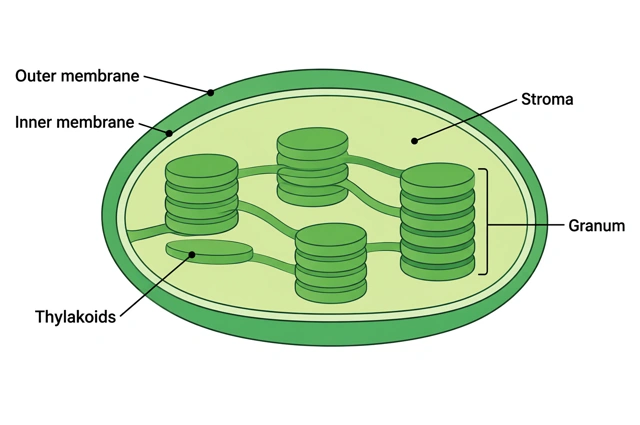

Can I make a simple chloroplast drawing for younger students?
Yes — ask for a simple overview and the diagram drops to the essentials: the outer membrane, inner membrane, stroma, thylakoids and a granum. Five labels or fewer usually covers a middle-school class.
How is this different from a generic AI image tool?
The subject brief is built in. Every render is instructed to follow the standard textbook drawing — every structure in its true position and relative proportion, nothing that does not belong in a chloroplast — with each label spelled exactly and set on a straight leader line. Check the labels against your course before printing; the canvas lets you correct any in place.
Can I use the diagrams for school, teaching or publication?
Yes — diagrams you generate are yours to use in worksheets, presentations, handouts, theses and papers. Export high-resolution raster up to 4K depending on the model.
Can I change the labels after generating?
Yes. The result opens in a canvas workspace that recognizes the diagram labels — you can edit or translate the text, move leader lines, redraw a region or recolor without regenerating the whole figure.
