Plant Cell Diagram Generator
Describe the cell you need and get a labelled plant cell diagram — the wall drawn as a band, the vacuole at half the cell, chloroplasts with real grana — ready for a worksheet, a slide or a figure.
Plant cell diagram examples

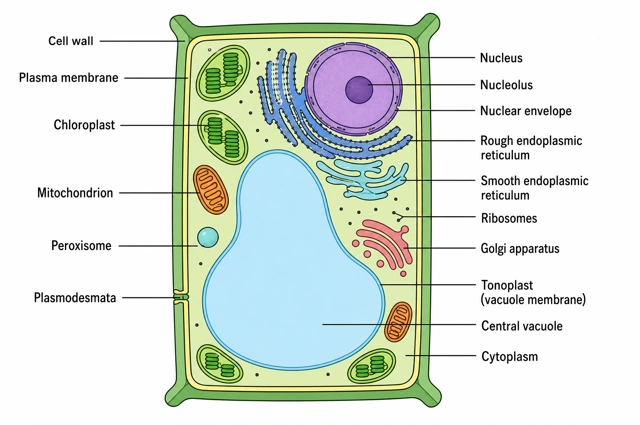

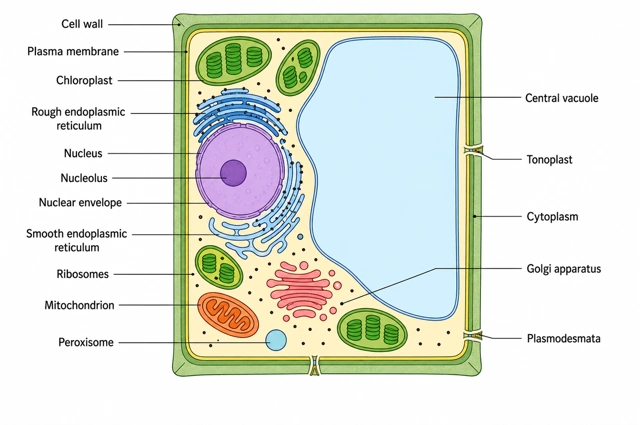

Real renders of four plant cell prompts: a fully labelled cell, a leaf mesophyll cell packed with chloroplasts, a simple six-label version and a plant–animal cell comparison. Click one to load its prompt and edit it.
What is a plant cell diagram?
A plant cell diagram is a labelled cross-section of a plant cell, showing the four structures that make it a plant cell — cell wall, chloroplasts, a large central vacuole and plasmodesmata — alongside the nucleus, mitochondria and membrane organelles it shares with animal cells. The outline you see is a cut edge rather than a silhouette, which is why the wall is drawn as a band with thickness instead of a single stroke.
Key facts
- Four structures animal cells do not have. The cell wall, chloroplasts and other plastids, one large central vacuole, and plasmodesmata crossing the wall into neighbouring cells.
- The wall sits outside the membrane. Working outward from the cytosol: plasma membrane, then cell wall, then the middle lamella cementing it to the next cell. Reversing that order is the commonest error in student diagrams.
- Plant cells have mitochondria too. Photosynthesis does not replace respiration — a plant cell runs both, so a correct diagram shows chloroplasts and mitochondria together.
- The vacuole is the largest compartment. It typically takes over 30% of the cell's volume, and up to 90% in some cell types, pressing the cytoplasm into a thin layer against the wall.
- Twelve labels cover most syllabuses. Cell wall, middle lamella, plasma membrane, central vacuole, tonoplast, nucleus with nucleolus, chloroplast, mitochondrion, rough endoplasmic reticulum, Golgi apparatus, ribosomes and plasmodesmata.
How does the plant cell diagram generator work?
Describe the cell
Say what the diagram is for and which structures you want labelled. A sentence is enough — the tool already knows the anatomy, from the wall's thickness to where the plasmodesmata cross it.
Pick a style
The default is a flat textbook plate on white: a boxy cell with a thick wall, a large central vacuole and green chloroplasts, each on a leader line. Watercolor or 3D give a softer or deeper look; ink line art prints best in a workbook.
Refine and export
The cell opens in your workspace. Fix a label on the canvas, redraw a single chloroplast or the vacuole alone, then upscale and export.
Parts of a plant cell and what each one does
The parts a labelled plant cell diagram is normally expected to name, what each one does, and whether an animal cell has it. This is the default label set unless you ask for a shorter one.
| Part | What it does | In animal cells? |
|---|---|---|
| Cell wall | Bears the tension that lets the cell hold turgor pressure, and gives the plant its rigidity | No |
| Middle lamella | Pectin-rich layer cementing the walls of two neighbouring cells together | No |
| Plasma membrane | Controls what enters and leaves; carries the cellulose synthase complexes that spin the wall outward | Yes |
| Central vacuole | Storage, digestion and control of turgor pressure; over 30% of cell volume | No — small vesicles instead |
| Tonoplast | The vacuole membrane; holds the osmotic gradient turgor depends on | No |
| Nucleus | Holds the genome, including about 90% of the genes for chloroplast proteins | Yes |
| Chloroplast | Photosynthesis, plus amino acid and fatty acid synthesis | No |
| Mitochondrion | ATP synthesis by respiration — present alongside chloroplasts, not instead of them | Yes |
| Rough endoplasmic reticulum | Ribosome-studded membrane where secreted and membrane proteins are made | Yes |
| Golgi apparatus | Modifies and sorts proteins, and builds the wall polysaccharides | Yes |
| Ribosomes | Translate mRNA into protein, free in the cytosol or bound to the ER | Yes |
| Plasmodesmata | Cytoplasmic channels through the wall, connecting neighbouring cells | No — gap junctions instead |
Syllabuses differ on how many of these they expect. GCSE and middle-school worksheets usually stop at six or seven; A-level, AP and IB add the tonoplast, the plasmodesmata and the ER–Golgi pair. Name the labels you need and only those are drawn.

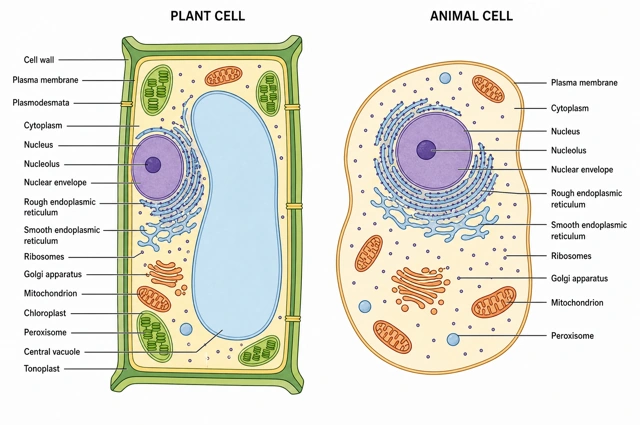

Plant cell vs animal cell: what is the difference?
Plant cells have four structures animal cells lack — a cell wall, chloroplasts, a large central vacuole and plasmodesmata — and they divide by building a new wall rather than pinching in two. Animal cells have centrioles and prominent lysosomes that higher plant cells do not. Everything else is shared, which is why the two diagrams differ mainly at the outline.
| Plant cell | Animal cell | |
|---|---|---|
| Outer boundary | Cell wall of cellulose and pectin, outside the plasma membrane | Plasma membrane only |
| Shape | Fixed and angular — usually drawn as a rounded rectangle | Variable — usually drawn round |
| Chloroplasts | Present, along with other plastids | Absent |
| Vacuole | One large central vacuole, over 30% of the volume | Several small vesicles and lysosomes |
| Centrioles | Absent from higher plants | Present, in a centrosome beside the nucleus |
| Cell junctions | Plasmodesmata through the wall | Gap, tight and anchoring junctions |
| Cell division | A new wall is built outward from inside the cell | A ring of actin and myosin pinches the cell in two |
| Shared organelles | Nucleus, mitochondria, ER, Golgi, ribosomes | Nucleus, mitochondria, ER, Golgi, ribosomes |
Ask for both cells in one figure and they are drawn side by side at matched scale, shared organelles labelled once — the layout a compare-and-contrast question or a Venn diagram exercise expects. One row to check against your syllabus: lysosomes are often listed as animal-only, but plant cells do the same lytic work inside the vacuole, so some textbooks call the vacuole the lysosome equivalent rather than calling lysosomes absent.
Where are plant cell diagrams used?
Plant cell diagrams are used mostly in biology teaching — labelling worksheets, revision sheets and lecture slides — and as the reference plan behind a cell model project. What changes between them is how many parts are labelled, not the anatomy.
School biology
Labelling worksheets and revision sheets from middle school through GCSE, A-level, AP, IB and CBSE class 9. Usually a full labelled plate, or the same drawing with the names removed so students fill them in.
Cell model projects
The reference plan behind a 3D plant cell model in card, clay or cake. A diagram fixes what has to be in the model and where each part sits before anything is built.
Lectures and textbook plates
Undergraduate slides and textbook-style figures, where the wall between two cells is resolved into three layers and the thylakoid stacking inside the chloroplast is drawn rather than implied.
Plant science figures
Schematic panels in work on cell wall composition, chloroplast biology, transport through plasmodesmata and crop traits, with the structure under study marked directly on the cell.
Common questions about plant cell diagrams
What should a labelled plant cell diagram include?
Twelve parts cover every common syllabus: cell wall, middle lamella, plasma membrane, central vacuole, tonoplast, nucleus with nucleolus, chloroplast, mitochondrion, rough and smooth endoplasmic reticulum, Golgi apparatus, ribosomes and plasmodesmata. All of them are labelled by default — ask for a shorter set if your worksheet only needs six or seven.
Can I get an unlabelled plant cell diagram for students to fill in?
Yes — ask for the blank or numbered version and you get the same drawing with the names removed. Numbered leader lines let you print an answer key alongside it; a fully blank outline works better when students have to place the leader lines themselves.

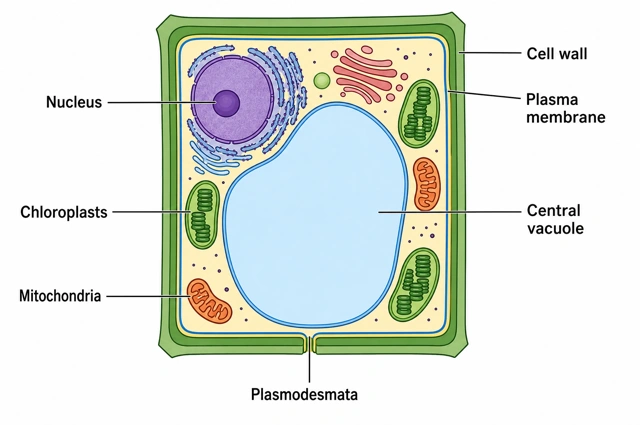

Can I make a simple plant cell diagram for younger classes?
Yes. Say how many labels you want and the diagram drops to that set. A six-label version usually keeps the cell wall, plasma membrane, nucleus, chloroplast, central vacuole and cytoplasm, and leaves out the ER, Golgi, tonoplast and plasmodesmata.
Can it draw a plant and animal cell comparison in one figure?
Yes — ask for both cells side by side and they are drawn at matched scale, with the shared organelles labelled once. You can also ask for the differences alone, which is the figure a Venn diagram or a compare-and-contrast question expects.
How does the tool keep plant cell anatomy correct?
The subject knowledge is built in. Every render is constrained to correct plant cell anatomy: the wall drawn as a band with thickness rather than a single stroke, the central vacuole taking roughly half the drawn area, no centrioles — and every label spelled from a fixed vocabulary, so you don't get garbled pseudo-text.
Why does the vacuole take up half the diagram?
Because it does in the cell. A mature plant cell's central vacuole typically occupies over 30% of the volume and up to 90% in some cell types, pressing the cytoplasm and organelles into a thin layer at the margin. A diagram with a small vacuole floating mid-cell is drawn from other diagrams, not from cells.
Do plant cells have mitochondria?
Yes — plant cells have both chloroplasts and mitochondria, and a correct diagram shows both. Photosynthesis stores energy as glucose; respiration in the mitochondria releases it as ATP, and it runs day and night. Chloroplasts with no mitochondria is one of the most common errors in student diagrams.
What is the difference between the cell wall and the cell membrane?
The cell wall lies outside the plasma membrane, and it is not a membrane. The wall is an extracellular mesh of cellulose microfibrils in a pectin matrix — freely permeable, and strong enough to bear turgor pressure. The plasma membrane lies against its inner face and is the selective barrier that decides what enters the cell.
How many chloroplasts should a plant cell diagram show?
There is no fixed number — most diagrams draw four to eight, which is a drawing decision rather than a measurement. A leaf mesophyll cell holds far more; a root cell holds none and carries colourless plastids instead. Say which cell type you want and the count follows from it.
Can I match the label list my syllabus uses?
Yes — name the labels and the diagram carries exactly those, in your spelling. That covers British and American variants such as labelled and labeled, and syllabus-specific naming such as cell surface membrane for the plasma membrane.
Can I use a plant cell diagram from here in a worksheet or a thesis?
Yes — the plant cell diagrams you generate are yours to use in biology worksheets, lab handouts, slides and theses. Export goes up to 4K depending on the model.
Can I rename or translate the plant cell labels afterwards?
Yes. The canvas recognizes each label, so you can change 'plasma membrane' to 'cell membrane', translate the set, move a leader line off the vacuole or recolor the chloroplasts without regenerating the figure.
